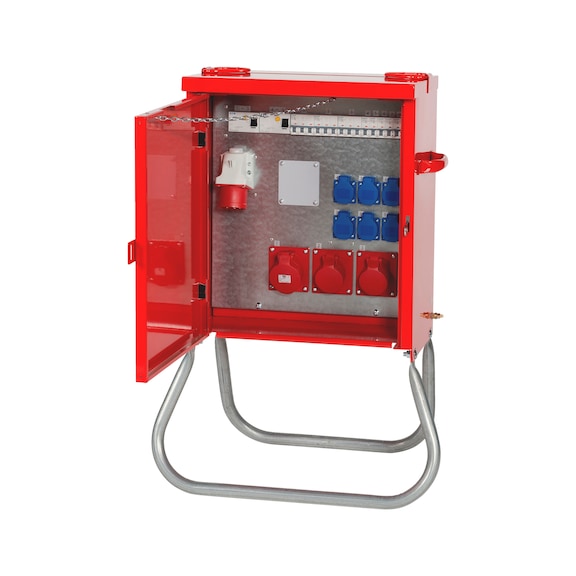

End distributor cabinet W-EV 32/21-6/G/X

End distributor cabinet W-EV 32/21-6/G/X
ENDDISTRCAB-(W-EV 32/21-6/G/AT)-RED

Art.-no. 0774771401
EAN 4065746801829
All versions

Prices for customers after login

Show availability in Würth branch offices
Exclusively for trade customers

Register now and access more than 60,000 products

Complies with new DIN VDE 0100 Part 704:2018-10 specifications
  • Large, easy-to-maintain connection space

  • Strong, zinc-plated sheet steel housing with weather-resistant powder coating

  • Zinc-plated base with plastic sleeves or zinc-plated tabs for ground nails for floor mounting

  • Two pivoting lifting eyelets

  • Ergonomically shaped carrying handles

  • High-quality door hinges with long service life

  • Door opening limiting chain for the best possible protection of the door hinges

  • Lockable door closing mechanism

  • Made in Germany
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

For indoor and outdoor use

Instructions

Plug-in sub-distributors, also with certified intermediate counter for sub-measurement, as a special supply point in accordance with DIN VDE 0100 Part 704 for connecting alternating and three-phase power consumers on construction sites downstream of a connection distributor cabinet or a distributor/end distributor cabinet.

Output

1 CEE 32 A, 5 pin, 400 V, 2 CEE 16 A, 5 pin, 400 V, Six shockproof sockets 16 A, 250 V

Socket type

0 - not applicable

Input

CEE 32 A, 5 pin, 400 V with phase inverter

Cable connection

0 - not applicable

Cable type

0 - not applicable

Main fuse

2 FI 40/0,03 A, type A, 1 LS 25 A, 3P, C, 2 LS 16 A, 3P, C, 6 LS 16 A, 1P, C

Connected load

22 kVA

IP protection class

IP 44

Protection class

Protection class I/protective grounding

Min./max. temperature conditions

35 to -25 °C

Material

Sheet steel

Length x width x height

285 x 500 x 900 mm

Additional accessory:

Product
Description
Quantity
PU
Price
/PU
Magno padlock
Magno padlock

PADLOK-MAGNO-BRS-30MM

From size 30 upwards, the shackle locks on both sides for increased stability
