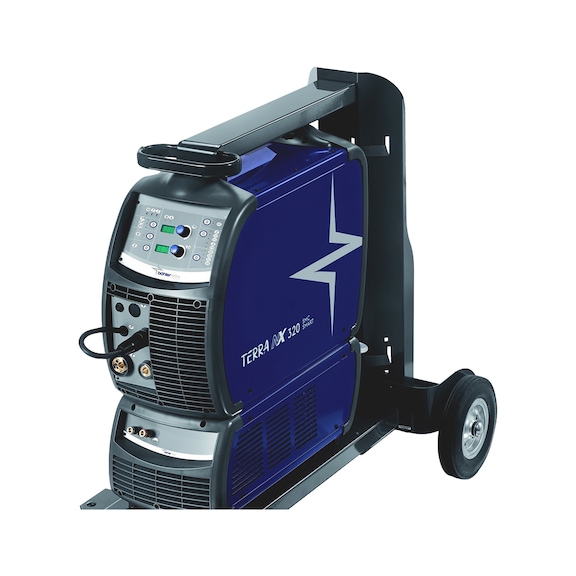

MIG/MAG welding system TERRA NX 320 SMC
WELDSYS-MIG/MAG-TERRA-NX-320-SMC
Art.-no. 9501039850
EAN 4068362743917
Individual price display after login
Show availability in Würth branch offices
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +43 50 8242 0.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 60,000 products
Product information
Datasheets(X)
Nominal voltage | 400 V |
Weldable wires | Aluminium, diameter 0.8 - 1.6 mm, Steel, diameter 0.6-1.0 mm, Steel/stainless steel, diameter 1.0 - 1.6 mm |
Min./max. current | 3-320 A |
ON time at max. current (40°C) | 45 % |
Max. current | 320 A |
Cable length | 5 m |
Weldable material thickness | Steel/stainless steel 1-8 mm |
Length | 690 mm |
Weight of machine | 33000 g |
Width | 290 mm |
Height | 510 mm |
IP protection class | IP 23S |
RoHS-compliant | Yes |
