One-sided hybrid ladder

Name: One-sided hybrid ladder
Brand: Würth
SKU: 0962934506

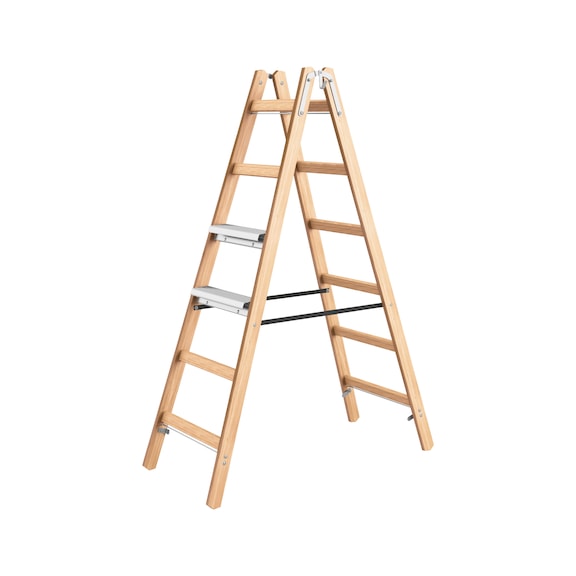

Hybrid ladder, one-sided with aluminium steps
STANDLDR-HYBRID-2X6-(W.1SD-2ALU-STEP)

Art.-no. 0962934506

EAN 4062856470617

All versions

Similar products

Prices for customers after login

One-sided hybrid ladder

Art.-no. 0962934506

Prices for customers after login

Quantity

x 1 pcs

Show availability in Würth branch offices

Exclusively for trade customers

Locate branch office
Login/Register
Call customer service: +43 50 8242 0

Wooden ladder, single-sided with two non-slip 80 mm deep aluminium steps with tested slip resistance for safe and effortless work according to TRBS 2121-2

Low weight

With finger pinch protection when folding due to 25 mm strut clearance

Secure and stable thanks to two round metal rods on each side, which clamp the struts together

80 mm deep aluminium steps with grooved surface, slip resistance class R12 according to DIN 51130

Hardwood rungs, double mortised

Bucket hook integrated in hinge

Transport lock on ladder base

Notice

The aluminium rungs (including fastening material) are included with the ladder and can be fitted in just a few easy steps.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Material	0 - not applicable
Surface	0 - not applicable
Material of beam	Wood
Material of rungs	Wood
Material of steps	Aluminium
Number of rungs	2 x 6
Number of steps	2
Length	1.7 m
Width (bottom)/width (top)	530/340 mm
Rail dimensions	22 mm x 59 mm
Step depth	80 mm
Rung distance	267 mm
Rung dimensions	20 x 50 mm
Stand area according to TRBS 2121-2	Yes
Stride length	1.09 m
Height, vertical	1.6 m
Load capacity	150 kg
Stand height	1.0 m
Working height	2.5 m
Weight	9.8 kg
Standards	EN 131

Additional accessory:

Product

Description

Quantity

Price
/PU

Retrofit step For wooden runged stepladders/hybrid ladders

RETFITSTEP-STEPLDR

Art.-no. 0962930950

Comfortable and safe standing position according to TRBS 2121 Part 2. With tested slip resistance

x 1 pcs

Retrofit step For wooden runged stepladders/hybrid ladders

RETFITSTEP-F.STEPLDR

Art.-no. 0962930952

Comfortable and safe standing position according to TRBS 2121 Part 2. With tested slip resistance

x 1 pcs

Bucket hook

BCKTHOK-F.LDR

Art.-no. 0962931930

Universal for all runged ladders

x 1 pcs

Aluminium hook-in tray

HOKINTRY-F.LDR-ALU

Art.-no. 0962931931

Universal for runged ladders

x 1 pcs

Inspection sticker

INSPSTCK-F.LDR

Art.-no. 0962931937

For documenting the regular inspection of ladders as required by law

x 10 pcs

Tool storage For wooden standing ladders (design from Sept. 2020)/hybrid ladders

TLSHLF-(F.WO-STANDLDR/HYBRIDLDR)

Art.-no. 0962931914

For wooden standing ladders (designs from September 2020)/hybrid ladders

x 1 pcs
