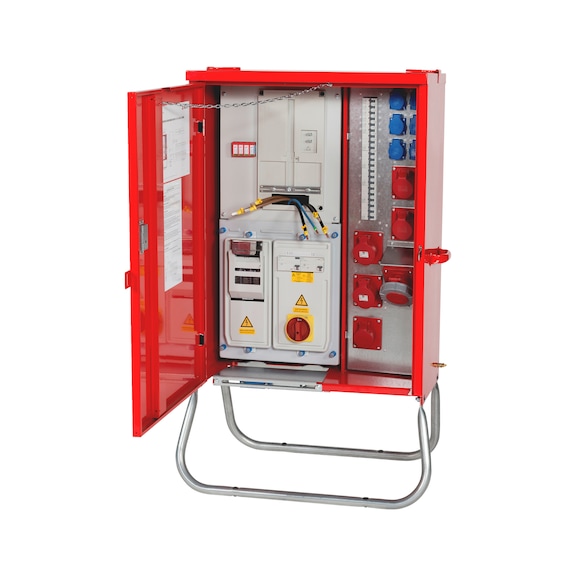

Construction site power distribution W-AVEV 63/321-6/UR2
Construction site power distribution  W-AVEV 63/321-6/UR2 - 1
Construction site power distribution  W-AVEV 63/321-6/UR2 - 2
Construction site power distribution  W-AVEV 63/321-6/UR2 - 3
Construction site power distribution  W-AVEV 63/321-6/UR2 - 4
Construction site power distribution  W-AVEV 63/321-6/UR2 - 5
Construction site power distribution  W-AVEV 63/321-6/UR2 - 6
Construction site power distribution  W-AVEV 63/321-6/UR2 - 7
Construction site power distribution  W-AVEV 63/321-6/UR2 - 8
Construction site power distribution  W-AVEV 63/321-6/UR2 - 9
Construction site power distribution  W-AVEV 63/321-6/UR2 - 10
Construction site power distribution  W-AVEV 63/321-6/UR2 - 11
Construction site power distribution  W-AVEV 63/321-6/UR2 - 12
Construction site power distribution  W-AVEV 63/321-6/UR2 - 13
Construction site power distribution  W-AVEV 63/321-6/UR2 - 14
Construction site power distribution  W-AVEV 63/321-6/UR2 - 15
Construction site power distribution  W-AVEV 63/321-6/UR2 - 16
Construction site power distribution  W-AVEV 63/321-6/UR2 - 17
Construction site power distribution  W-AVEV 63/321-6/UR2 - 18
Construction site power distribution  W-AVEV 63/321-6/UR2 - 19
Construction site power distribution  W-AVEV 63/321-6/UR2 - 20
Construction site power distribution  W-AVEV 63/321-6/UR2 - 21

For detailed information, other images and documents, please select individual articles from the following table.

Construction site power distribution W-AVEV 63/321-6/UR2

See product details

Available in 5 versions

Prices for customers after login

Show availability in Würth branch offices
Exclusively for trade customers

Register now and access more than 60,000 products

Variants

Exclusively for trade customers

Register now and access more than 60,000 products

Call customer service: +43 50 8242 0

Prices for customers after login

  • Innovative connection technology/load relief saves time

  • Secure and fast installation thanks to ISO housing covers with quick-release fasteners that can be sealed

  • Large, easy-to-maintain connection space

  • Strong, zinc-plated sheet steel housing with weather-resistant powder coating

  • Zinc-plated base with plastic sleeves or zinc-plated tabs for ground nails for floor mounting

  • Two pivoting lifting eyelets

  • Ergonomically shaped carry handles

  • High-quality door hinges with long service life

  • Door opening limiting chain for the best possible protection of the door hinges

  • Lockable door closing mechanism

  • Made in Germany


Contents:


  • Main fuse: according to supply area

  • Incl. surge arresters 3+1 (TT+TN) Cl. "C" (25 A-125 A)

  • 1x CEE outlet, 63 A/400 V via RCCB direct

  • 2x CEE outlet, 32 A/400 V with 2x LS 32 A 3p/C

  • 3x CEE outlet, 16 A/400 V with 3x LS 16 A 3p/C

  • 6x safety socket outlets, 16 A/250 V with 6x LS 16 A 1p/C

  • 1x RCCB 63 A/4/0.3 A all-current sensitive RCCB type B for CEE socket 63 A 5p 400 V

  • 1x RCCB 63 A/4/0.03 A thermally fixed across the remaining sockets
