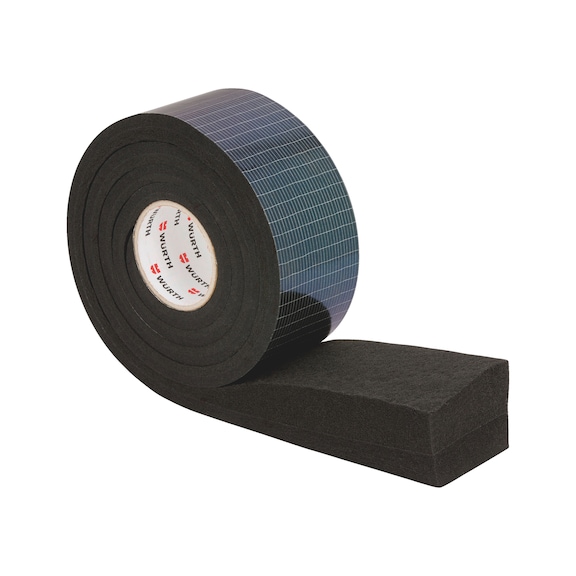

Sealing tape VKP® Trio BF
Pre-compressed and impregnated joint sealing tape for simultaneously sealing indoor and outdoor lifting/sliding doors, particularly those with deep joints.
Register now and access more than 60,000 products
Variants
Register now and access more than 60,000 products
Call customer service: +43 50 8242 0
Prices for customers after login
Tested sealing properties over 600 Pa, BG1 and BGR in accordance with DIN 18542.
Controlled and assured resistance to driving rain – see test report no. NDS04-2016-127 by MPA Hanover
Time-saving application
Resistant to driving rain, heat-insulating and air-tight in a single product.
Water-repellent, yet permeable to water vapour
The wedge-shaped structure achieves the required vapour diffusion property of "tighter sealing on the inside than the outside".
Can be installed in any weather
The product provides completely secure sealing in virtually any kind of weather.
No chemical reactions at the construction site
The expansion speed of VKP® Trio BF depends on the temperature. In high temperatures, store the tape in a cool location; in low temperatures, store in a warm location.
In case of joints between solid components, please use VKP® Plus, art. no. 0875 0xxx. In the bottom joint area, we recommend Flextape, art. no. 0875 0xxx or EPDM External Sealing Tape, art. no. 0875 150xxx. Carry out sufficient tests of your own for paints and sealants. No interactions with commercially available grout. The window is mounted as a spaced installation.
Façade joints under a heavy load must be sealed off with VKP® Plus.
The usage instructions are recommendations based on the tests we have conducted and our experience; carry out your own tests before each application. Due to the large number of applications and storage and processing conditions, we do not assume any liability for a specific application result. Insofar as our free customer service provides technical information or acts as an advisory service, no responsibility is assumed by this service except where the advice or information given falls within the scope of our specified, contractually agreed service or the advisor was acting deliberately. We guarantee consistent quality of our products. We reserve the right to make technical changes and further develop products.
Used for installing construction elements with a wide joint depth, e.g. when assembling lifting/sliding doors.
VKP® Trio BF is wedge-shaped; the material is thicker on the inside than on the outside. In the joint, this waterproofing guarantees that the vapour diffusion gradient from inside to outside required by the RAL-Gütegemeinschaft für Fenster und Haustüren (RAL Quality Association for Windows and Doors) is achieved.
1. Preparation
- Roughly clean the surfaces to remove dirt
- Cut off approx. 2 cm from the beginning and end of the tape
- Take the additional length of approx. 2 cm/m into account when cutting the tape to length
2. Installing on windows
Remove the protective film from the self-adhesive strip and adhere the tape to the window profile. Make sure the positioning is correct internally and externally (grey label on the inside).
3. Appearance in the corner area
The tape will meet bluntly in the corners; compress in longitudinal direction. Leaks must always be avoided. If available, seal with flexible tape adhesive (art. no. 0893 710 xxx).
