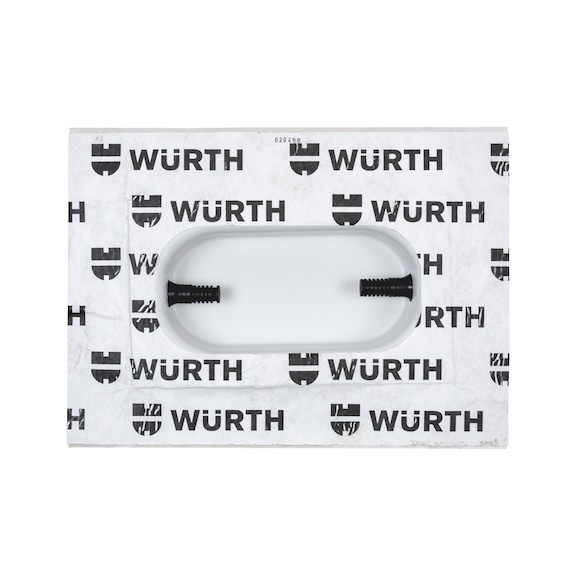

Airtight sleeve WÜTOP® socket seal
Sleeve for airtight electrical installations without a costly installation level.
Register now and access more than 60,000 products
Variants
Register now and access more than 60,000 products
Call customer service: +43 50 8242 0
Prices for customers after login
Powerful-bond, solvent-free adhesive with maximum ageing resistance
Sturdy design and ample installation space for compensation of structural tolerances
- Suitable for flat and deep cavity wall sockets
- For socket combinations from 1x to 5x
Airtight cable and pipe entries according to DIN 4108-7, OVE guideline R7 and current EnEV
- Lateral and rear insertion for up to three lines or one pipeline up to 25 mm in diameter
- Maximum safety with blower door tests
The usage instructions are recommendations based on the tests we have conducted and on our experience; carry out your own tests before each application. Due to the large number of applications and storage and processing conditions, we do not assume any liability for a specific application result. If our free customer service provides technical information or acts as an advisory service, no liability is assumed in relation to the provision of this service except where the advice or information given falls within the scope of our specified, contractually agreed service or the advisor was acting deliberately. We guarantee the consistent quality of our products. We reserve the right to make technical changes and further develop products.
Airtight electrical installation without a costly installation level.
Open membrane for line insertion using a pointed a tool where possible. Guide the line through the seal membrane and push the Wütop socket seal into the opening. Remove the protective film of the airtight adhesive collar and press on firmly using press-on roller or plastic spatula. Repeat the same procedure for the lower adhesive collar.
