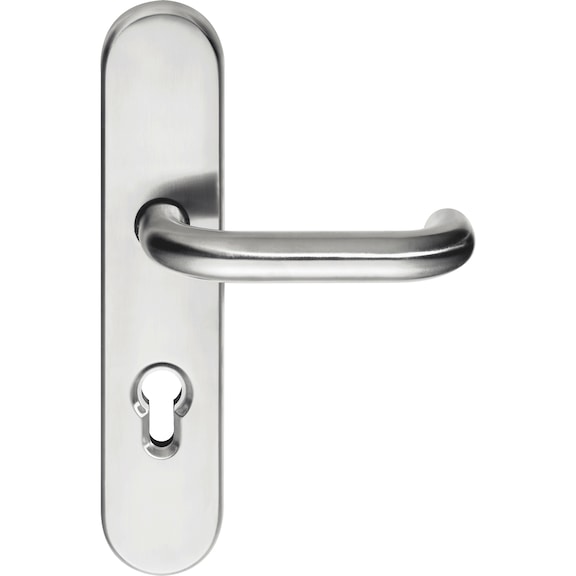

Stainless steel security door fitting Phönix 5

PHOENIX 5 stainless steel security door fitting
SDF-A2-PHOENIX5-ES1-CH-CC-88-14-MATT

Art.-no. 0689252566
EAN 4058794148701

Prices for customers after login

Show availability in Würth branch offices
Exclusively for trade customers

Register now and access more than 60,000 products

Material: Stainless steel

Bearings: Plain plastic bearings



Mounting: Metric screws throughout



Long plate lever/handle set with rigid knob



Can be used on the left and right



Free angular movement: < 1 mm



Additional items:


Drilling jigs, mortise locks, door closers, swivel door drives, door stoppers, ventilation grilles, window handles, door hinges, pull sleeves, spyhole, 3D door hinge

Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Suitable for

House doors, Apartment entrance doors

Fire protection certified

No

Fitting version

Handle/knob

Punched-hole

PC

Material

Stainless steel A2

Gloss level

Matt

Suitable for min./max. door thickness (TS)

38-44 mm

Suitable for min./max. profile-cylinder projection

10-14 mm

Square size

8.5 mm

Spindle

With M8 thread

DIN direction

DIN R/L

Utilisation category

0 - not applicable

Resistance class

0 - not applicable

Bearing Technology

Mounted on friction bearings

Handle length

141 mm

Handle diameter

20 mm

Knob/handle plate/loop handle

Solid

Hole distance

88 mm

Label length (outer)

247 mm

Label thickness (outer)

14 mm

Label width (outer)

54 mm
