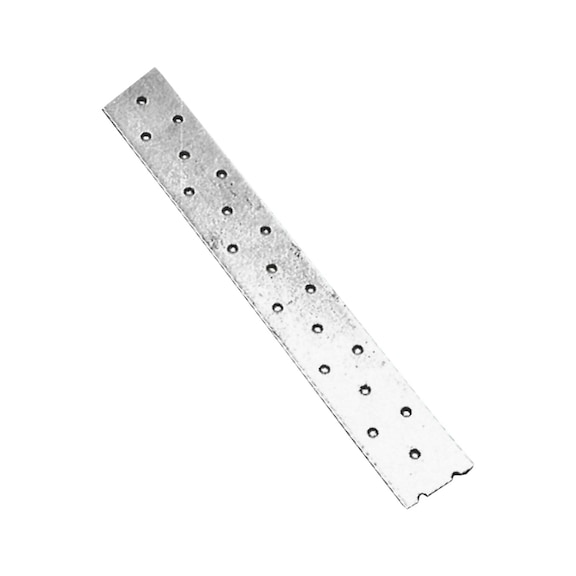

Steel strapping Standard

Steel strapping EN 14545
STSTRP-W.APROV-(TZN)-60MMX2,0MMX50M

Art.-no. 0681060250
EAN 4011231560337

Prices for customers after login

Show availability in Würth branch offices
Exclusively for trade customers

Register now and access more than 60,000 products

For diagonal bracing of roof and wall structures (as tie bar for wood to wood connections)
  • Sendzimir galvanised sheet steel

  • Hole diameter 5 mm

  • Roll length 50 m

  • Fastened with ring-shank nails 0681 940 ...
Notice

The stated load combinations are intended as reference values and are not a substitute for evidence in individual cases. The components being connected must have the required load capacity.

EN 14545:2009

Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

For diagonal bracing of roof and wall structures.

Instructions

Würth steel strapping can be directly fastened to the tops of rafters. Ensure that wind and tensile forces are correctly transferred to the roof structure. The steel strapping is fastened using Würth ring-shank nails. At least 2 nails or ASSY joist hanger screws must be used at each rafter crossing point. The nail connection at the end generally dictates the load-bearing capacity. Multiple wind brace bands can be arranged side by side to distribute stronger forces. It is advisable to use a wind brace band tensioner to ensure the steel strapping is evenly tightened. The edge distances and spacing of the nails or screws must comply with ÖNORM B-1995-1-1. Ensure that wind and tensile forces are correctly transferred to the roof structure.

Width x thickness

60 x 2 mm

Length of roll

50 m

Diameter of hole

5 mm

Weight

45000 g

Approval

EN 14545:2009-02

Min. tensile strength Rm

330 N/mm²

Min. breaking elongation A80

19 %

Material

Sheet steel

Material designation

S250GD

Material standard

DIN EN 10346:2009

Surface

Hot dip galvanized
