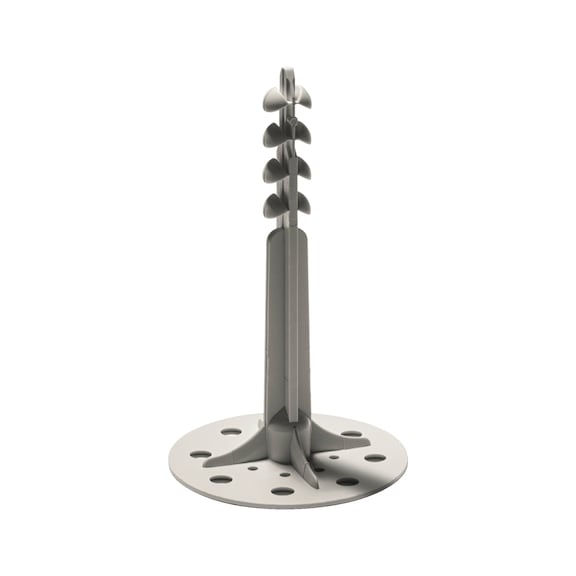

DHI insulation holder
The DHI enables the secure attachment of electrical equipment to insulated ceilings and walls - without the need for a cold bridge and with a stepless mounting depth.
Register now and access more than 60,000 products
Variants
Register now and access more than 60,000 products
Call customer service: +43 50 8242 0
Prices for customers after login
The anchor part is anchored directly in the load-bearing substrate. Suitable for screw mounting of clamps or equipment. Easy insertion with the press of a thumb, no powerful processing required.
For mounting on insulated ceilings and walls with a load-bearing base material (e.g. concrete). Ideal for electric, switch boxes and equipment.
1. Drill the hole with a diameter of 10 mm and a minimum depth of 45 mm in the bottom layer of concrete
2. Insert DHI anchor part into drill hole
3. Install the equipment with 4-4.5 mm screws
Recommended screws: Sheet metal/chipboard screws dia. 4 mm, length of thread engagement 10-15 mm
